The WHC1200/600 heavy-duty plastic crusher is configured for a wider feed stream of bulky rigid scrap such as appliance housings, automotive bumpers, containers and large moulded parts. A conveyor-assisted layout can provide more controlled feeding and connect the crusher with upstream sorting or downstream washing equipment.
Suitable Projects
- Bulky rigid plastic housings and automotive parts
- Large injection-moulded rejects and hollow containers
- Pre-shredded pallets and thick-wall plastic scrap

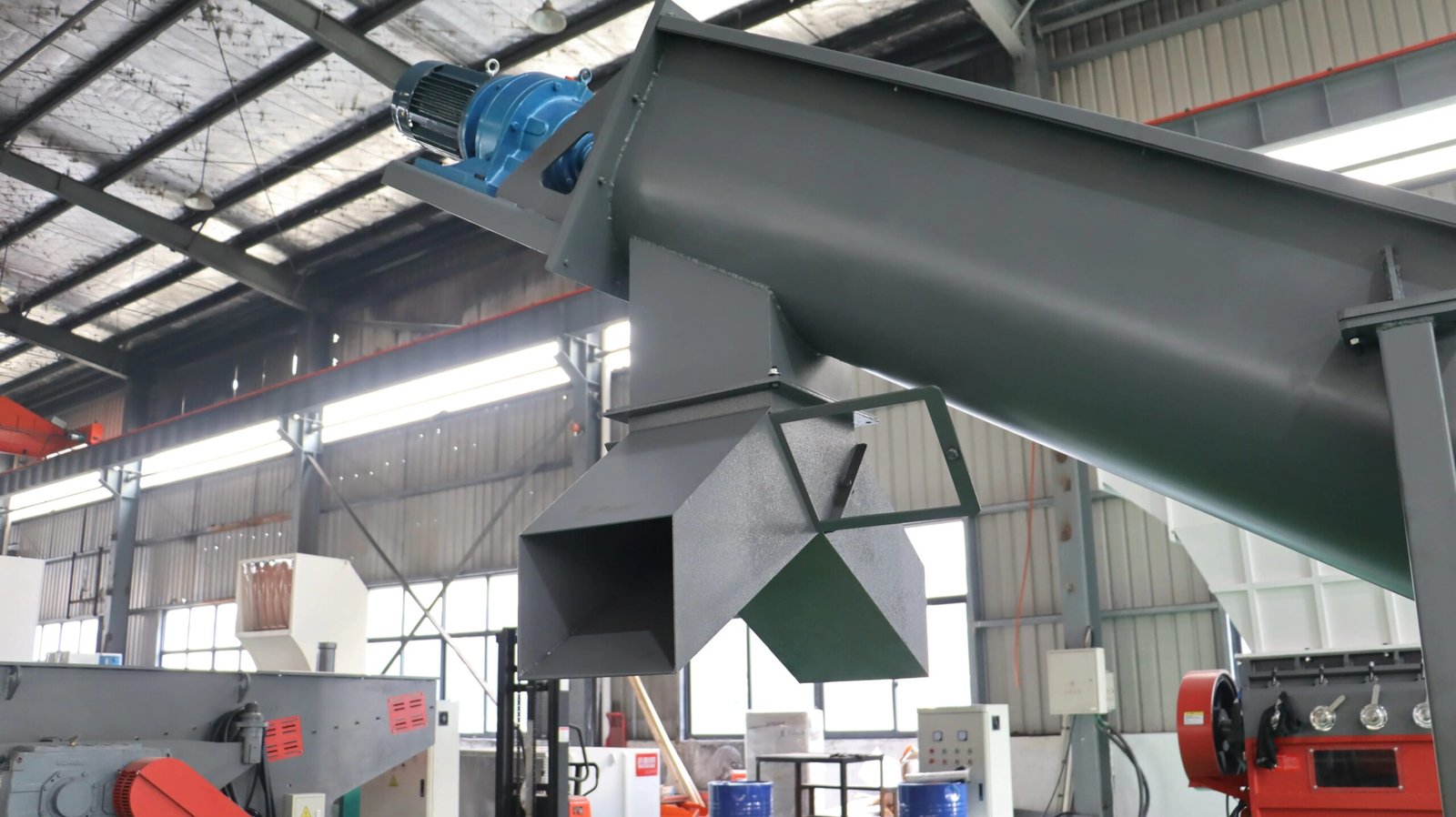

- Recycling lines requiring conveyor-controlled crusher feeding
Maximum part dimensions must be compared with the recorded 850 × 1200 mm inlet. Oversized or awkward parts may still require cutting or shredding before the crusher.
WHC1200/600 Reference Configuration
| Item | Reference value |
|---|---|
| Main-shaft length | 1200 mm |
| Rotor diameter | 600 mm |
| Main-shaft speed | 520 rpm |

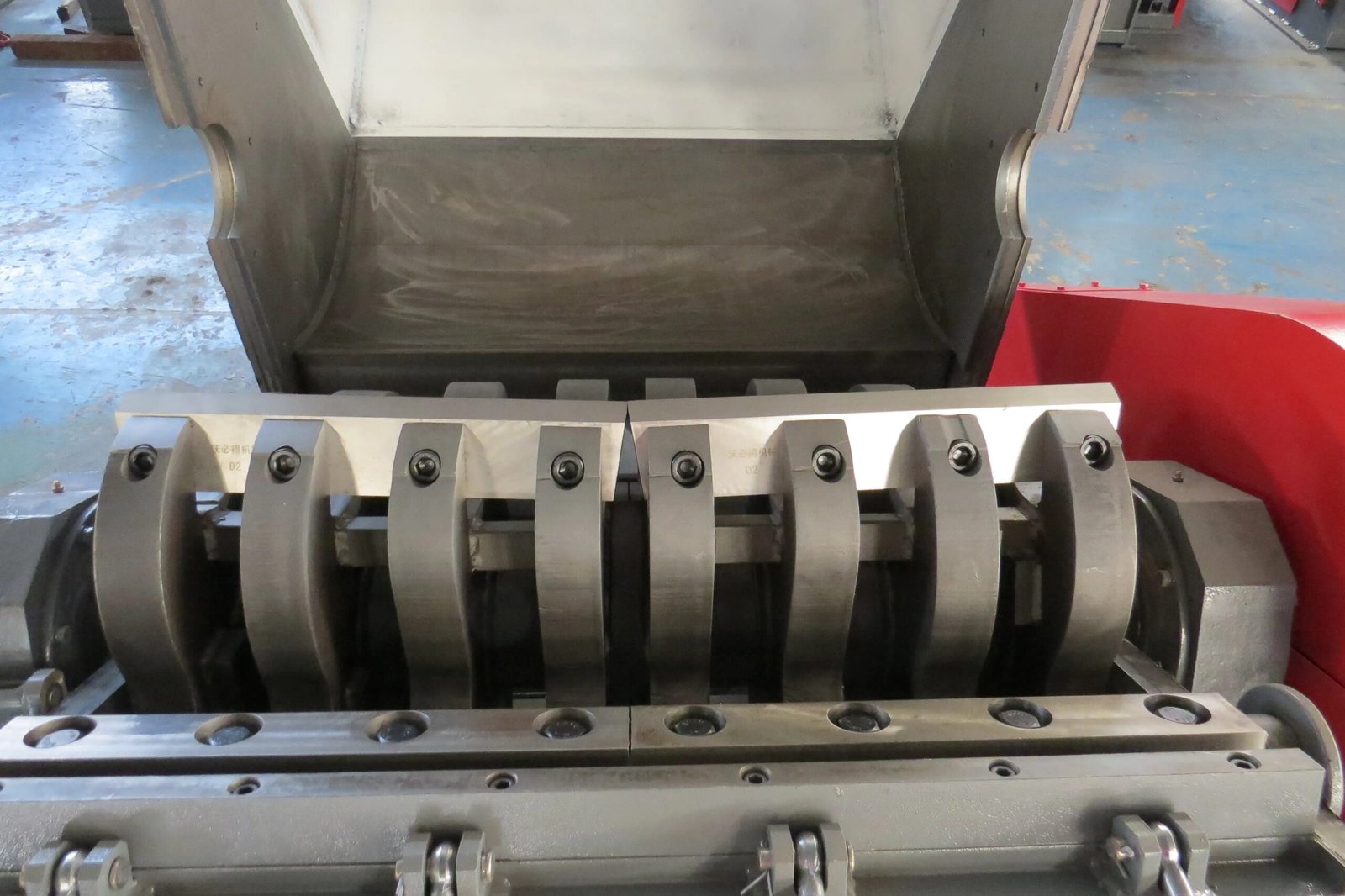

| Rotor blades | 2 × 5 / 2 × 7 pieces |
| Fixed blades | 4 pieces |
| Main motor | 75/90 kW |

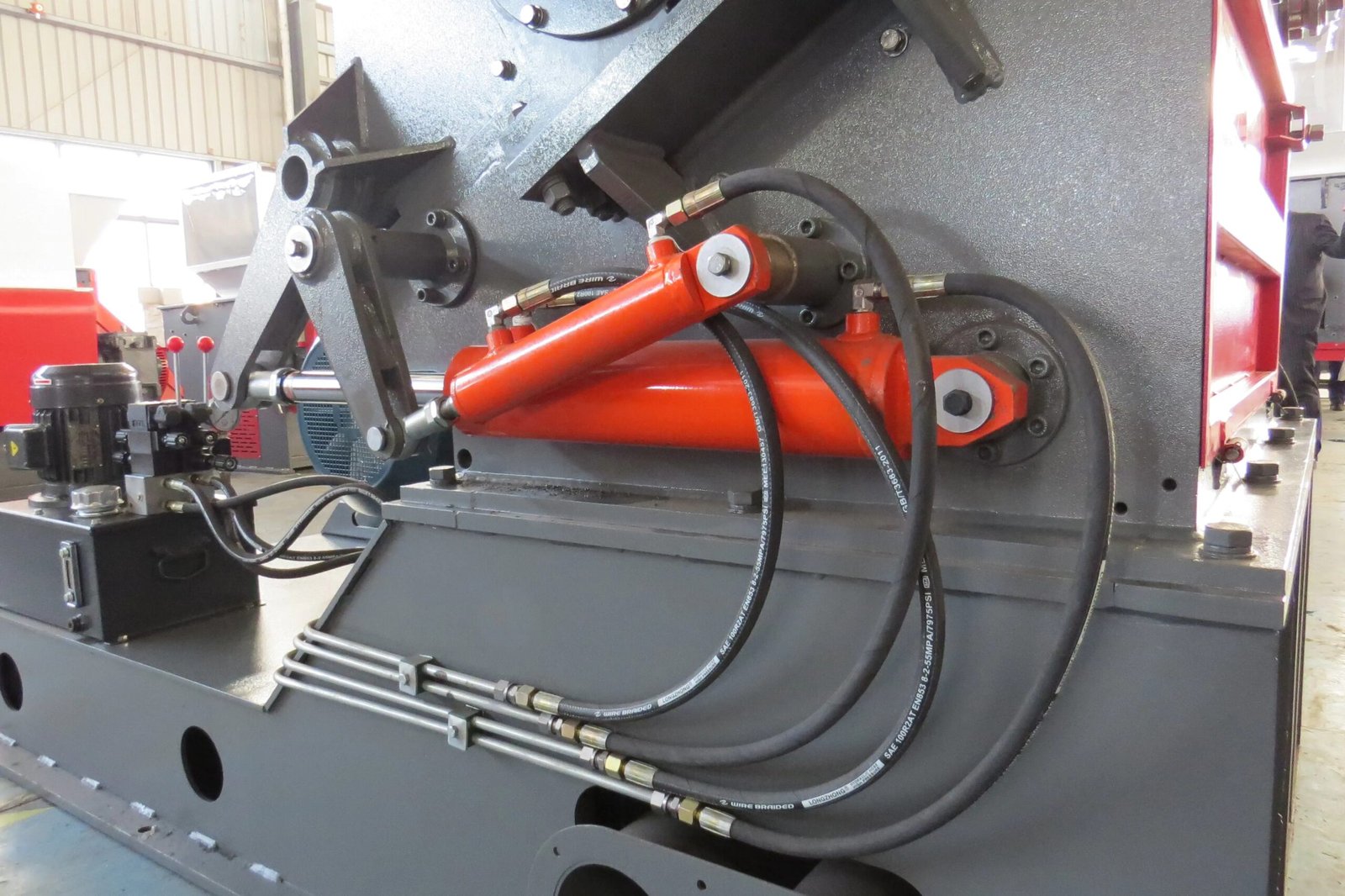

| Hydraulic power | 1.5 kW |

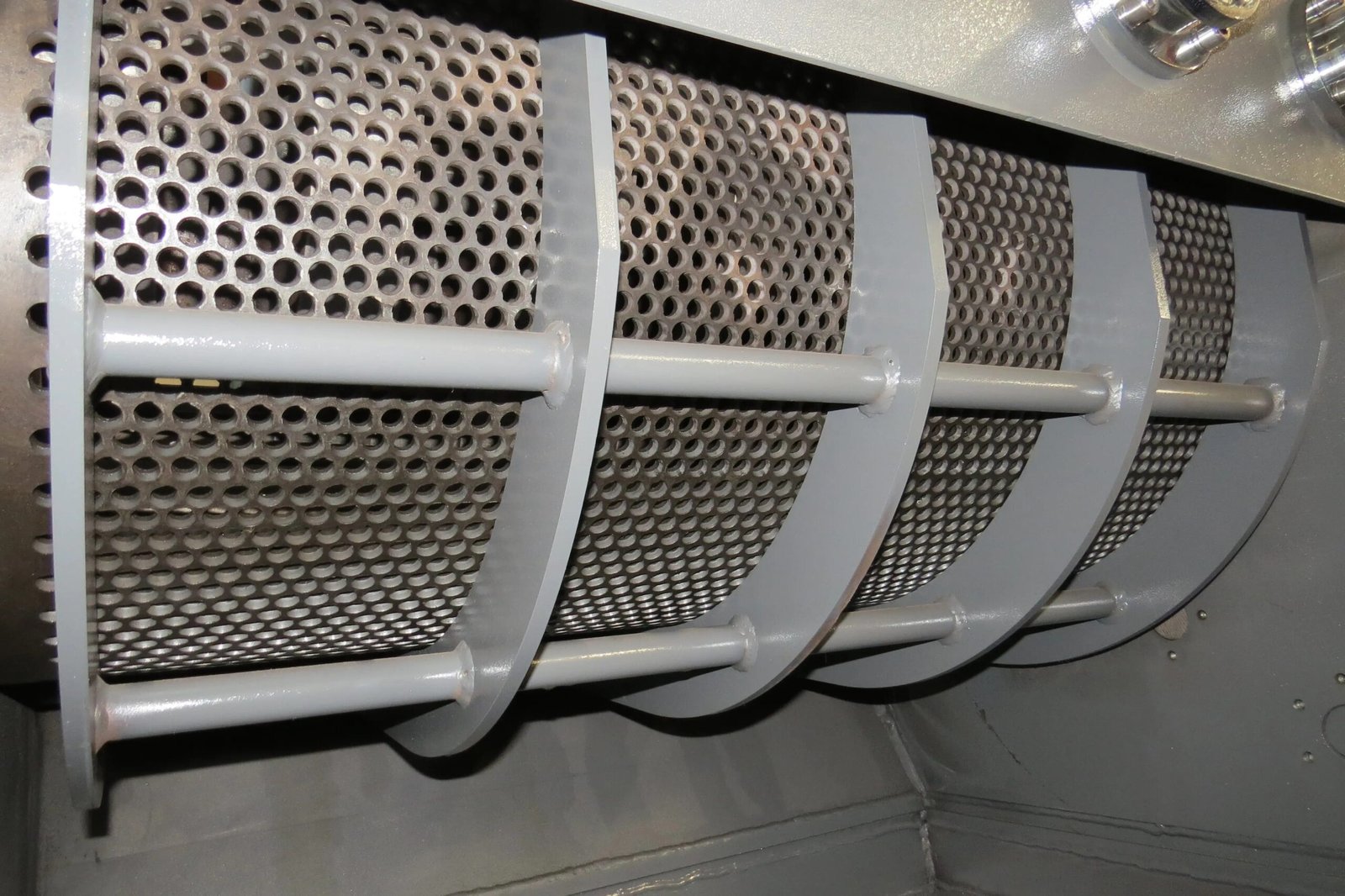

| Screen opening | 10–50 mm |
| Inlet size | 850 × 1200 mm |
| Overall dimensions | 2300 × 2150 × 3350 mm |
| Reference weight | 5500 kg |
| Recorded capacity range | 1000–1500 kg/h |
Conveyor size, speed and controls are project-specific. The reference capacity is not guaranteed and varies with feed shape, wall thickness, screen, rotor configuration and loading stability.
Project Information Required
- Material and photos of the largest parts
- Maximum dimensions, wall thickness and piece weight
- Required throughput and target discharge size
- Conveyor length, loading height and feeding method
- Downstream washing, separation or extrusion process
- Site layout, voltage, frequency and safety requirements
Compare the smaller WHC1000/600 crusher or review the heavy-duty plastic crusher category.
Request a WHC1200/600 Line Proposal
Send material photos, dimensions, target output, capacity, conveyor requirements and electrical standard through the AMIGE inquiry page. We will review the complete feeding, crushing and discharge arrangement.
