The WHC800/450 is a wider rigid-plastic crusher for injection-moulded rejects, housings, containers and moderate plastic lumps. Its 800 mm shaft length and recorded 530 × 800 mm inlet provide more cutting width than the WHC600 models while retaining a 450 mm rotor.
Intended Applications
- Injection-moulded lumps and rejected parts
- Appliance or equipment plastic housings after size review
- Rigid containers, pallets and hollow products that fit the inlet

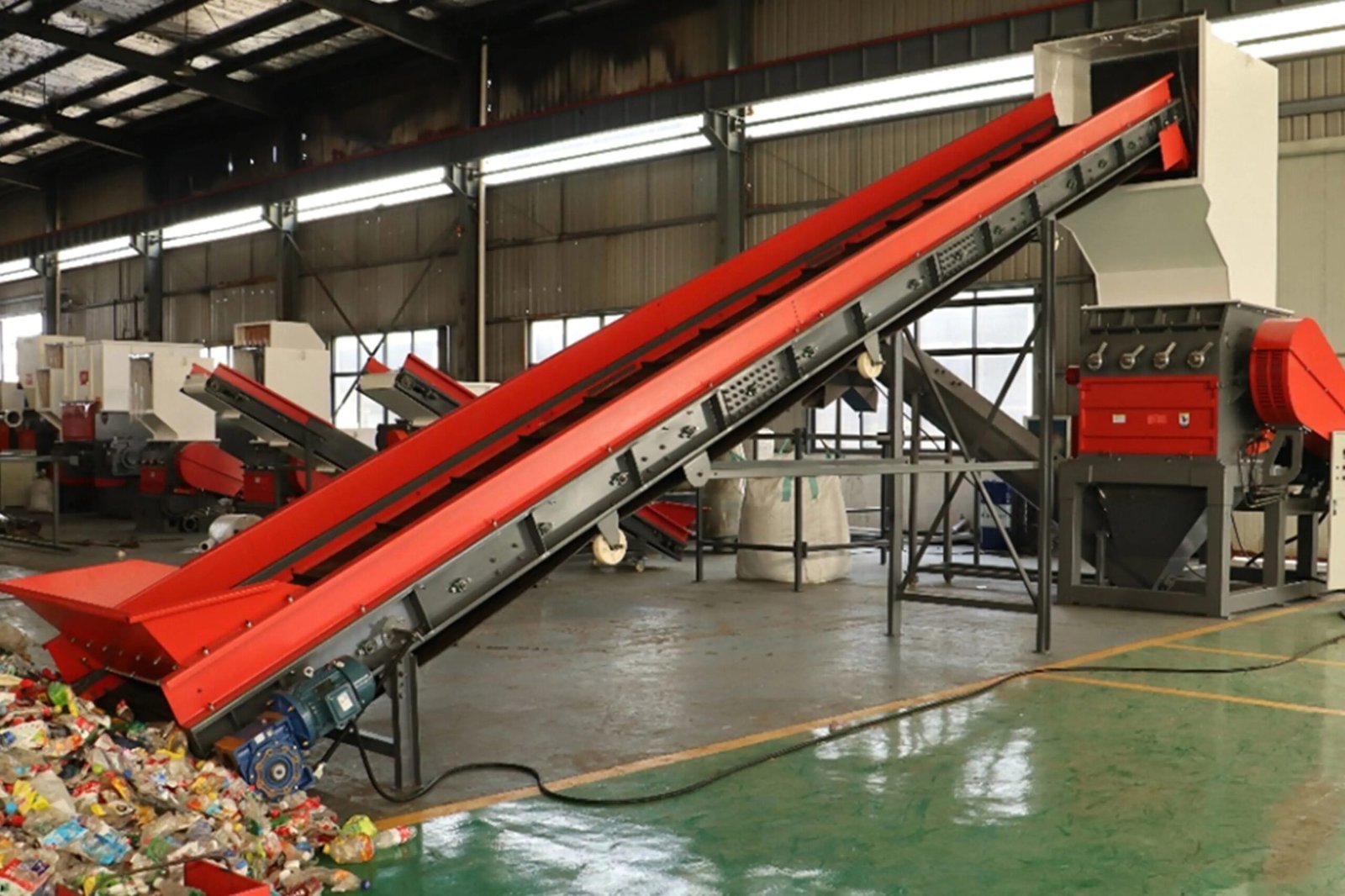

- Secondary crushing after a single-shaft shredder
Oversized bumpers, thick purgings or long pipes may need pre-cutting or a larger chamber. Buyers should not assume the listed capacity applies to every material.
WHC800/450 Reference Configuration
| Item | Reference value |
|---|---|
| Main-shaft length | 800 mm |
| Rotor diameter | 450 mm |
| Main-shaft speed | 580 rpm |

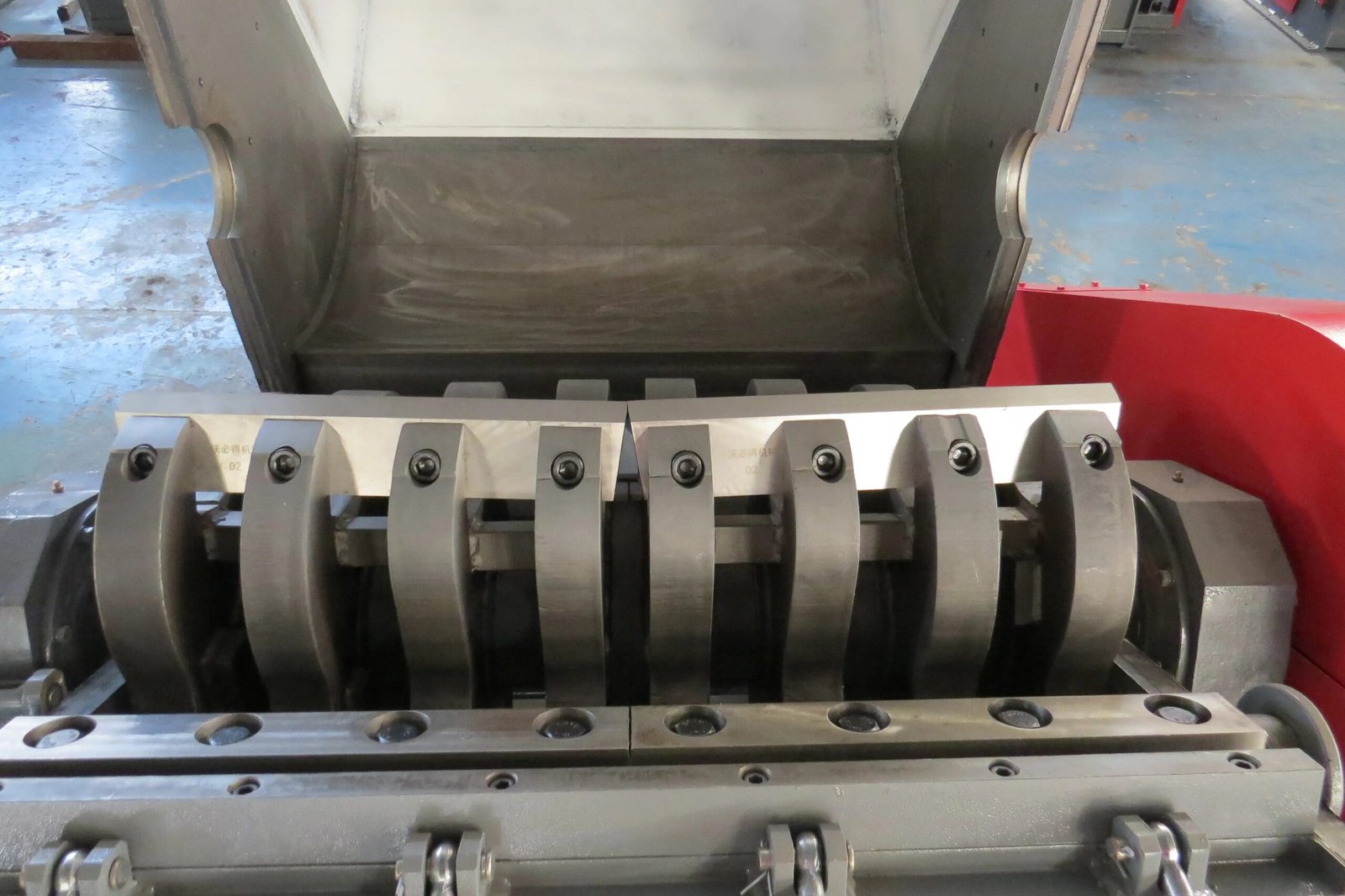

| Rotor blades | 2 × 3 pieces |
| Fixed blades | 4 pieces |
| Main motor | 37 kW |

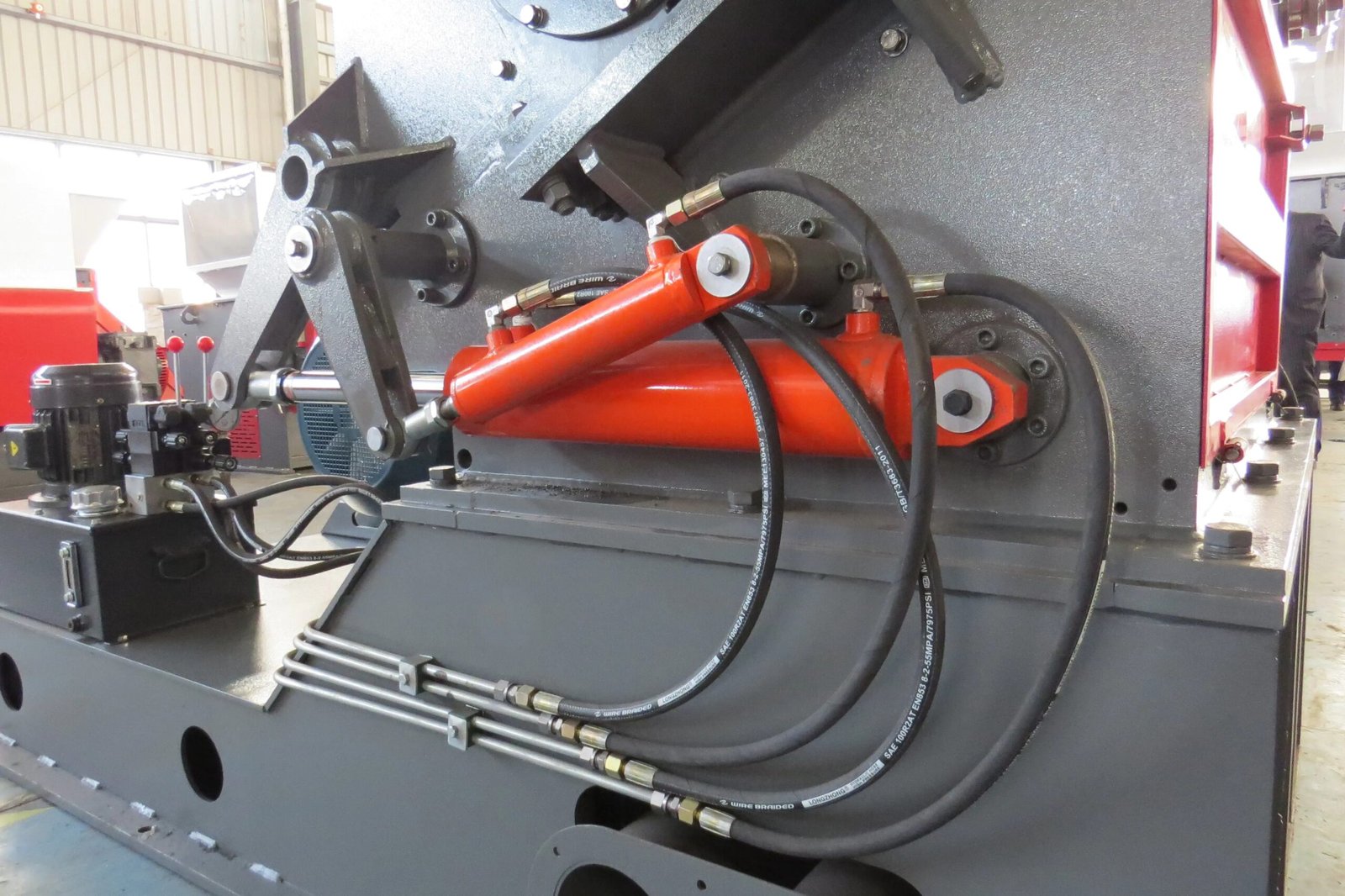

| Hydraulic power | 1.5 kW |

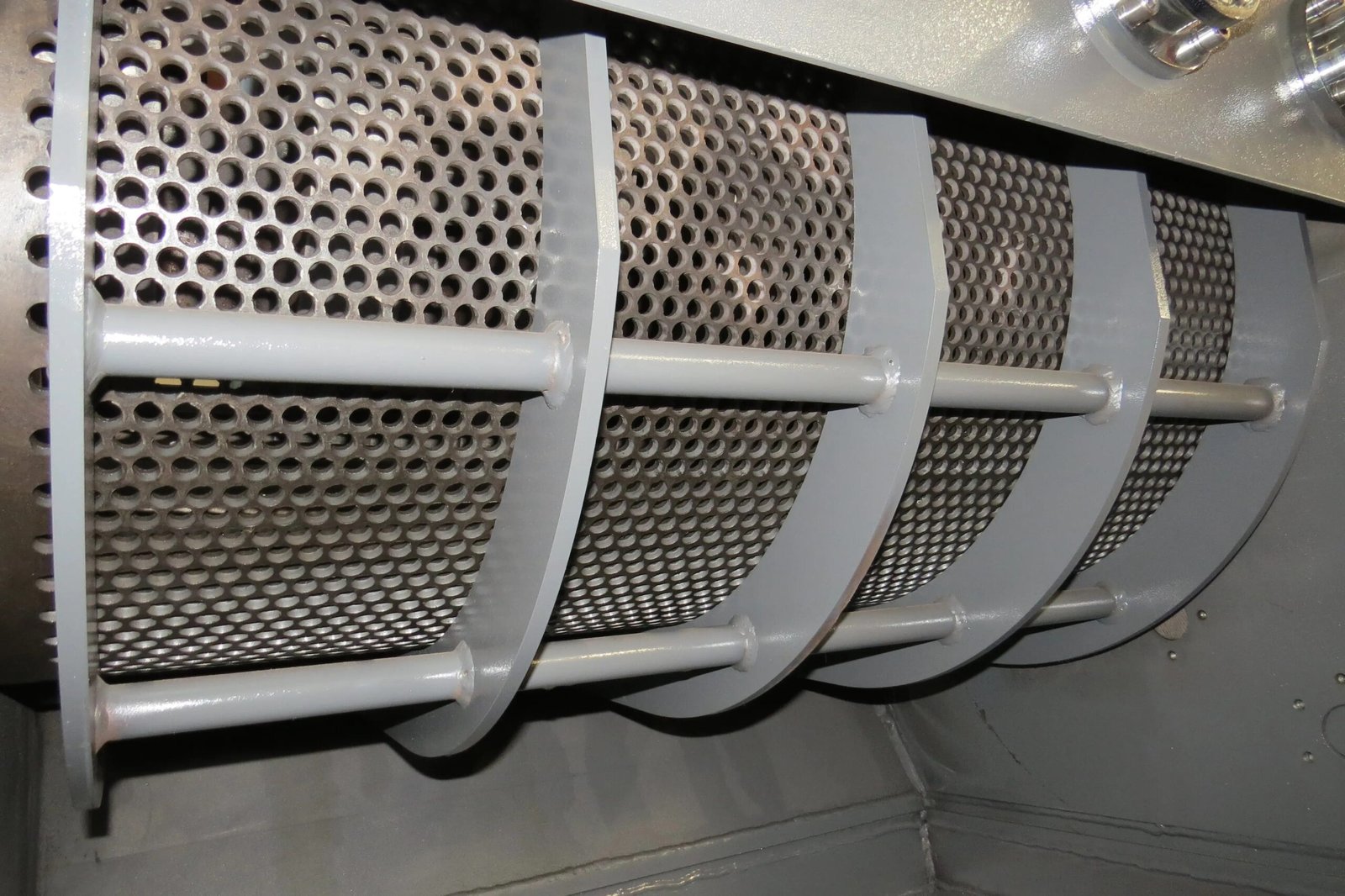

| Screen opening | 10–50 mm |
| Inlet size | 530 × 800 mm |
| Overall dimensions | 2000 × 1750 × 3150 mm |
| Reference weight | 3100 kg |
| Recorded capacity range | 500–800 kg/h |
The values above are reference configuration data. Material hardness, wall thickness, bulk density, screen opening, feed rate and blade wear determine actual output.
What Buyers Should Send
- Material photos and resin type
- Maximum lump or part dimensions
- Piece weight, wall thickness and contamination
- Desired flake size and hourly capacity
- Upstream shredder and downstream washing or pelletizing details
- Site voltage, frequency, space and feeding method
Compare the WHC600/450 model or the deeper-rotor WHC800/600 crusher.
Request a WHC800/450 Proposal
Send the required material and process details through the AMIGE inquiry page. We will assess inlet fit, rotor load, screen and conveying requirements before recommending a configuration.
