The WHC600/450 rigid plastic crusher combines a 600 mm shaft length with a larger 450 mm rotor. It is intended for containers, moulded parts, pipe or profile offcuts and production scrap that fit the recorded 530 × 600 mm inlet.
Suitable Feed
- Rigid PE, PP, PVC, ABS and PC production scrap
- Hollow containers and household plastic items
- Injection-moulded rejects, sprues and moderate lumps
- Pre-sized material before washing or pelletizing
The model should not be selected from polymer name alone. Piece dimensions, wall thickness, embedded metal, temperature and required discharge size affect motor load and usable throughput.
WHC600/450 Reference Configuration
| Item | Reference value |
|---|---|
| Main-shaft length | 600 mm |
| Rotor diameter | 450 mm |
| Main-shaft speed | 580 rpm |

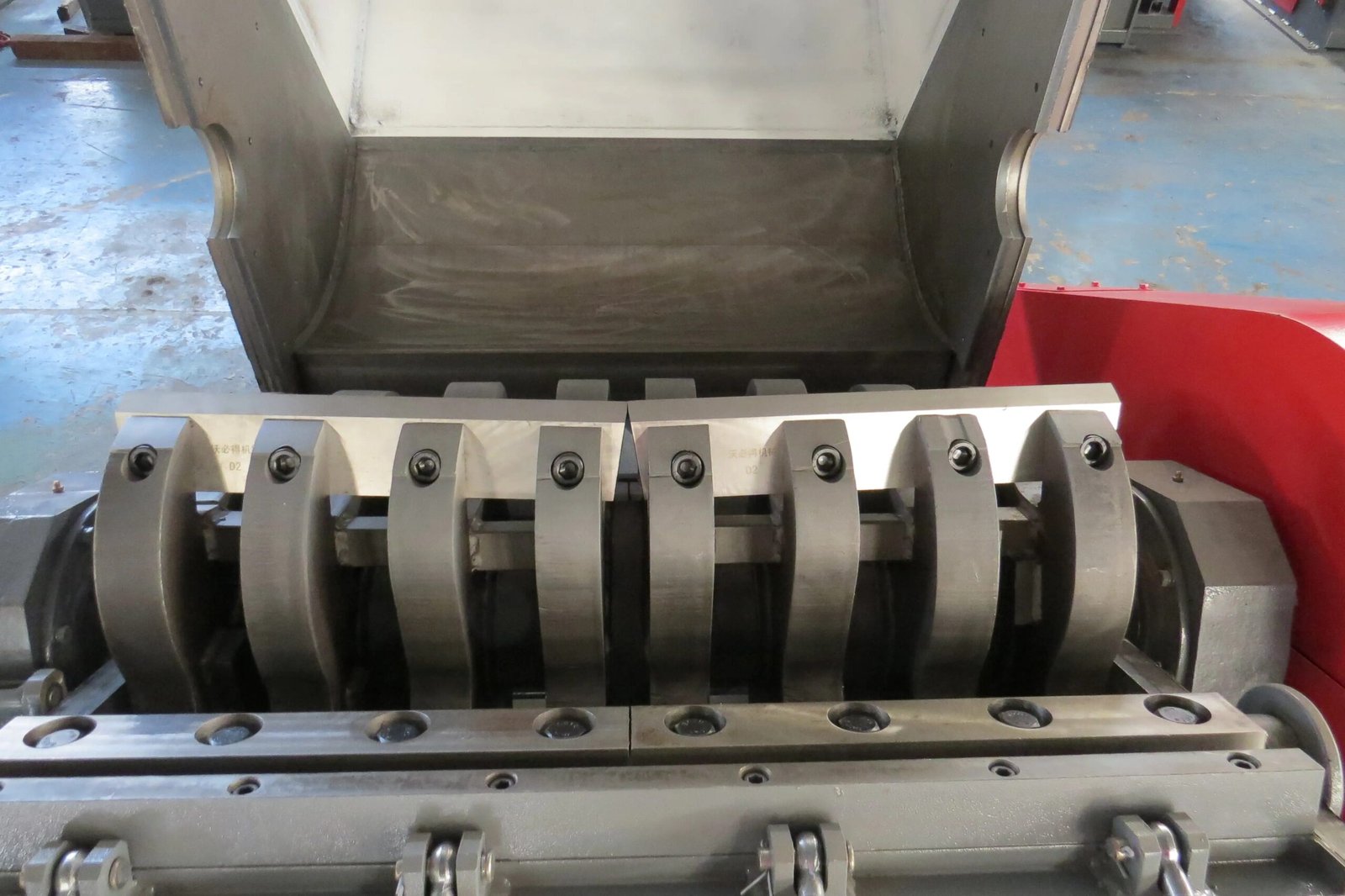

| Rotor blades | 2 × 3 pieces |
| Fixed blades | 2 pieces |
| Main motor | 30 kW |

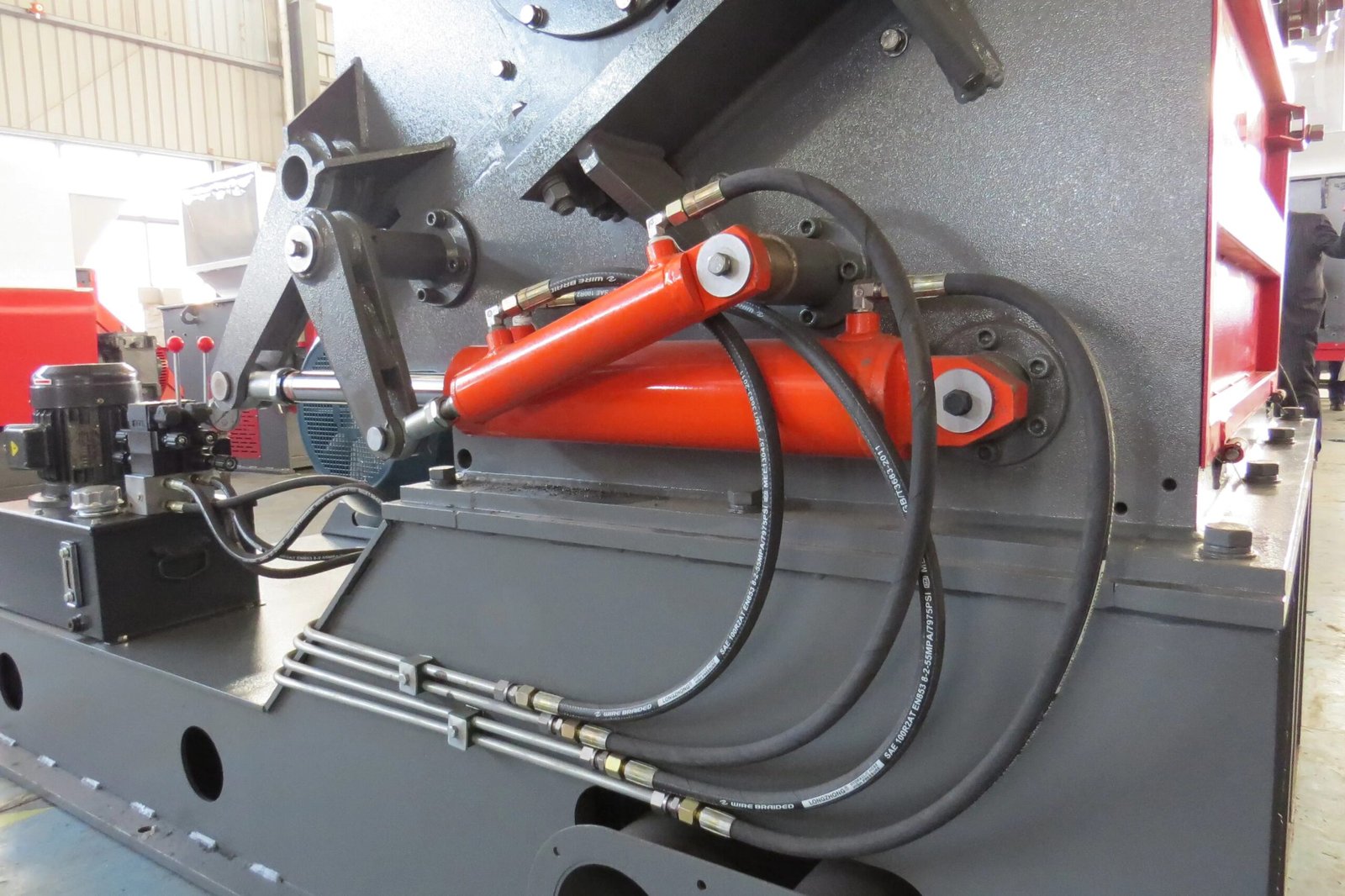

| Hydraulic power | 1.1 kW |

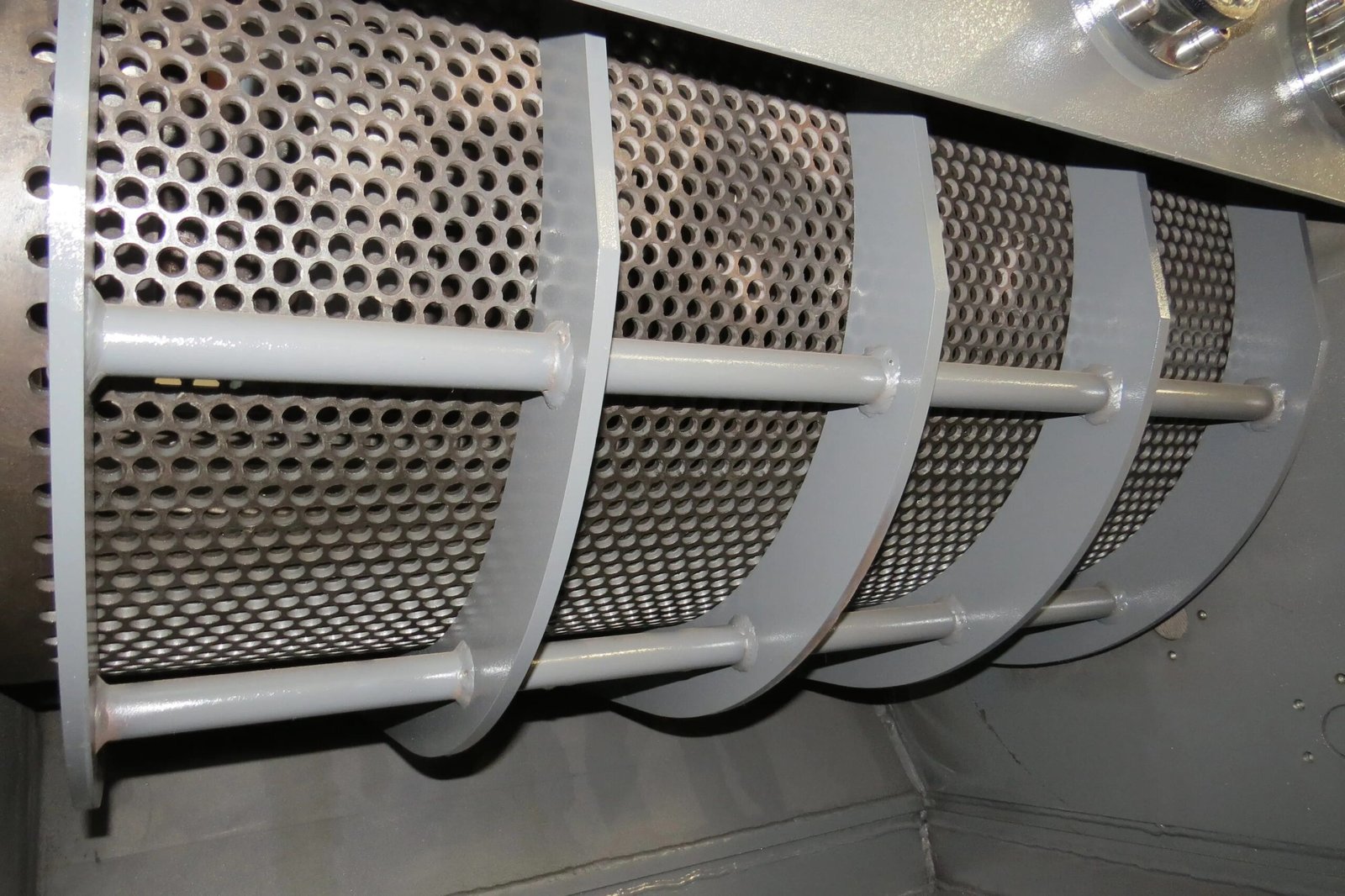

| Screen opening | 10–50 mm |
| Inlet size | 530 × 600 mm |
| Overall dimensions | 2000 × 1550 × 2550 mm |
| Reference weight | 2600 kg |
| Recorded capacity range | 300–600 kg/h |
All figures require confirmation for the final machine. Output depends on material geometry, bulk density, screen size, feeding stability and maintenance condition.
RFQ Information
- Material type and clear photos
- Maximum piece dimensions and wall thickness
- Metal, moisture or other contamination
- Target output size and downstream process
- Required hourly throughput and operating schedule
- Loading method, voltage and available space
Compare the smaller WHC600/350 crusher or the wider WHC800/450 lump crusher.
Request a WHC600/450 Configuration
Use the AMIGE inquiry page to send material, dimensions, target output, capacity and plant power. These details are required before the rotor, blade and screen arrangement can be confirmed.
