The twin shaft shredder mainly first shredding the nonmetallic scrap material (scrap tire, furniture, refrigerator, plastic product, wood and so on) for convenient to further process of material.
Main Application
The twin shaft shredder mainly first shredding the nonmetallic scrap material (scrap tire, furniture, refrigerator, plastic product, wood and so on) for convenient to further process of material.
Equipment Features

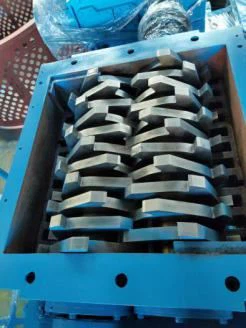

Adopted the disc blades of rotating shear and differential tear, the double running in opposite direction optimize the stress condition of the blades and shaft. Applied hard tooth reducer, which possess big bearing capacity, high efficiency, low noise, and so on. Used wear resistant alloy electrode surface welded disc blades cutting edge or special alloy inlay, the blade disc can be extended the lifespan by the cutting edge surface welded and sharpened repeatedly. The NGCL linking transmission applicable for harsh environment and convenient in maintain and install.
Main Technical Spec
| Equipment Model | TPS1200 | TPS800 | TPS600 |
| Motor power (Kw) | (18.5-37)×2 | (15-30)×2 | (15-22) ×2 |
| Blades Qty (Pcs) | 22 | 16 | 22 |
| Main shaft rotation speed (r/Min) | 5-14 | 5-14 | 5-14 |
| Shredder room length (mm) | 1200 | 800 | 600 |
| Round rolling screen size (mm) | Φ50-90 | Φ50-90 | Φ50-90 |
| Input size (mm) | ≤Φ1200 | ≤Φ800 | ≤Φ600 |
| Output size (mm) | 40-90 | 30-90 | 20-90 |
| Capacity with screen (Kg/h) | ≤3500 | ≤1800 | ≤900 |
| Capacity without screen (Kg/h) | ≤8000 | ≤5500 | ≤3000 |
| Size (L×W×Hmm) | 6310×3670×2850 | 4400×2200×3100 | 3700×2100×3100 |
| Equipment weight (Kg) | 1400 | 1200 | 900 |
