1.WHC series heavy-duty crushers are widely used in various of plastic products, such as PE, PP, PVC, PET, Rubber, ABS, PC, waste material…
2.Spindle rotor can be customized according to different applications, unique crushing chamber structure and feeding hopper form can recycle waste plastic into fine particles.
3.It use for various recycling production lines and with shredder,washing and pelletizing lines to meet customers recycling needs.
4.Capacity：500-800 kg/h
Application:
|
 |
Feature:
 |
1. Customized Main Shaft
|

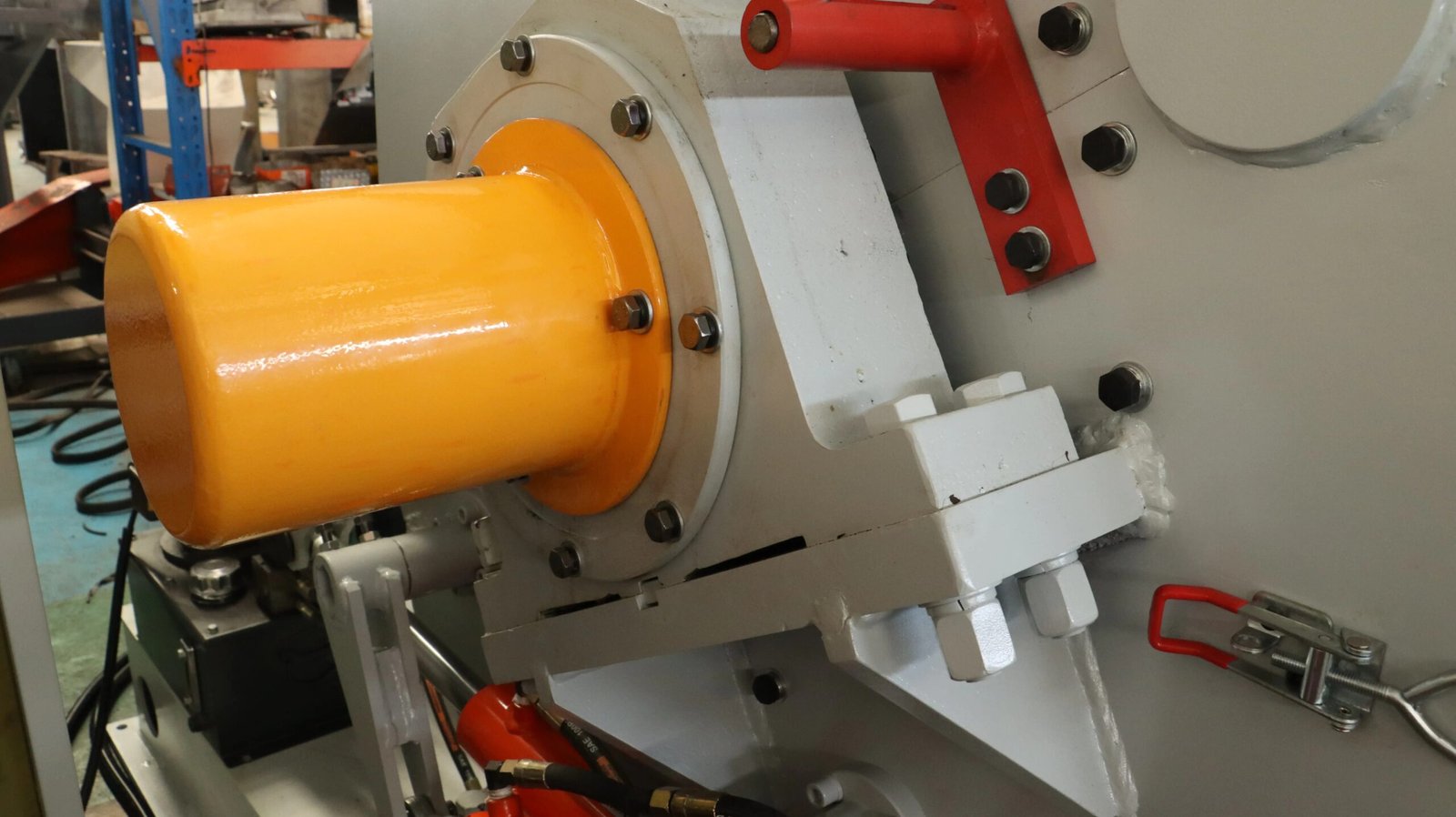

2. External bearing seat.
|
 |
 |

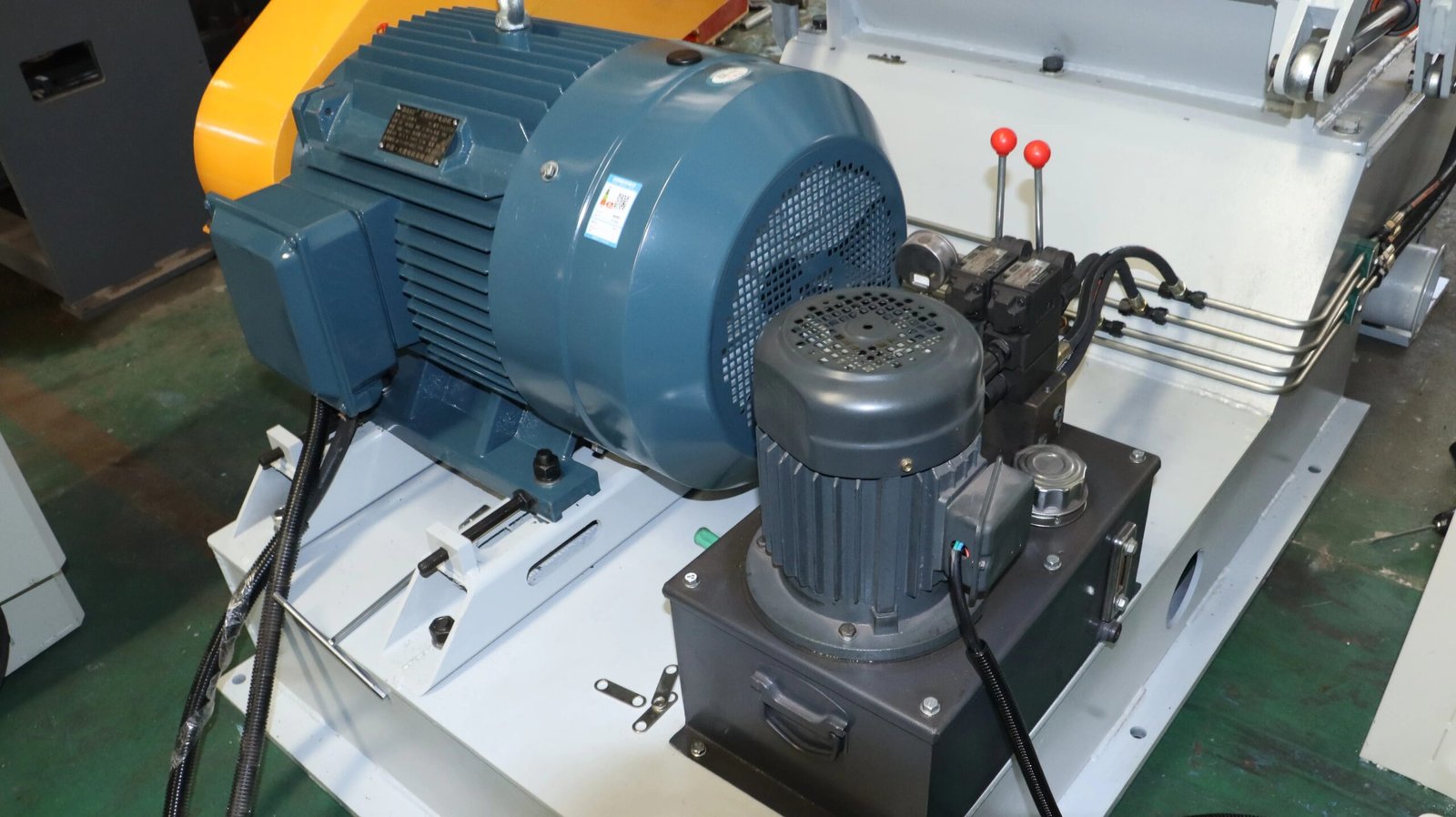

3.Hydraulic opening system.
|
4.Protection device while replacing blade.
|
 |
Product specifications:
| Model/Parameter | WHC600/350 | WHC600/450 | WHC800/450 | WHC800/600 | WHC1000/600 | WHC1200/600 | WHC1400/800 | WHC1600/800 |
| Main Shaft Length(mm) | 600 | 600 | 800 | 800 | 1000 | 1200 | 1400 | 1600 |
| Main Shaft Tactical Diameter(mm) | 350 | 450 | 450 | 600 | 600 | 600 | 800 | 800 |
| Main Shaft Speed(rpm) | 580 | 580 | 580 | 520 | 520 | 520 | 480 | 480 |
| Rotor Blades(PCS） | 2×3 | 2×3 | 2×3 | 2×5/2×7 | 2×5/2×7 | 2×5/2×7 | 2×7 | 2×7 |
| Fixed Blades(PCS） | 2 | 2 | 4 | 4 | 4 | 4 | 4 | 4 |
| Power(KW） | 22 | 30 | 37 | 55 | 55/75 | 75/90 | 132/160 | 160 |
| Hydraulic Power(KW) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 3 | 3 | |
| Screen Mesh Diameter(mm） | 10-50 | 10-50 | 10-50 | 10-50 | 10-50 | 10-50 | 12-50 | 12-50 |
| Inlet Size(mm） | 450×600 | 530×600 | 530×800 | 705×800 | 800×1000 | 850×1200 | 1400×1400 | 1600×1600 |
| Dimension(L*W*H）(mm） | 1650x1370x1950 | 2000x1550x2550 | 2000x1750x3150 | 2100x1750x3200 | 2300x1950x3350 | 2300x2150x3350 | 3500x2500x5000 | 3860x2650x5380 |
| Weight(kg） | 1800 | 2600 | 3100 | 3500 | 4500 | 5500 | 12000 | 14000 |
Wobide Machinery Co., Ltd is professional Customized Plastic Grinder Waste Crusher WHC800/600 suppliers and China Customized Plastic Grinder Waste Crusher WHC800/600 factory, these equipment is being used in many application. View application or details above or inquiry more. We also OEM/ODM Customized Plastic Grinder Waste Crusher WHC800/600. You can find tech details and ask price at Wobide Machinery Co., Ltd.
