1.WPS whole series shredder use high-quality alloy steel and equipped with D2/DC53 blades,also offer different design solution according to different materials.
2.The series single-shaft shredders were developed with premium quality,wide range of applications, low speed（Main shaft speed：78rpm）, high torque, and low noise.
3.Capacity：300-3000 kg/h
Application:
|  |
Features:

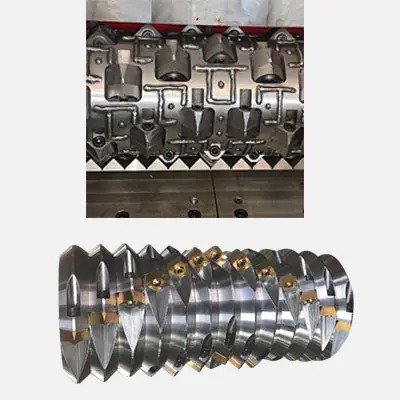

 | 1.Customized Spindle Rotor
|
2.Rotor Change Angle
|  |
 | 3.External bearing seat.
|

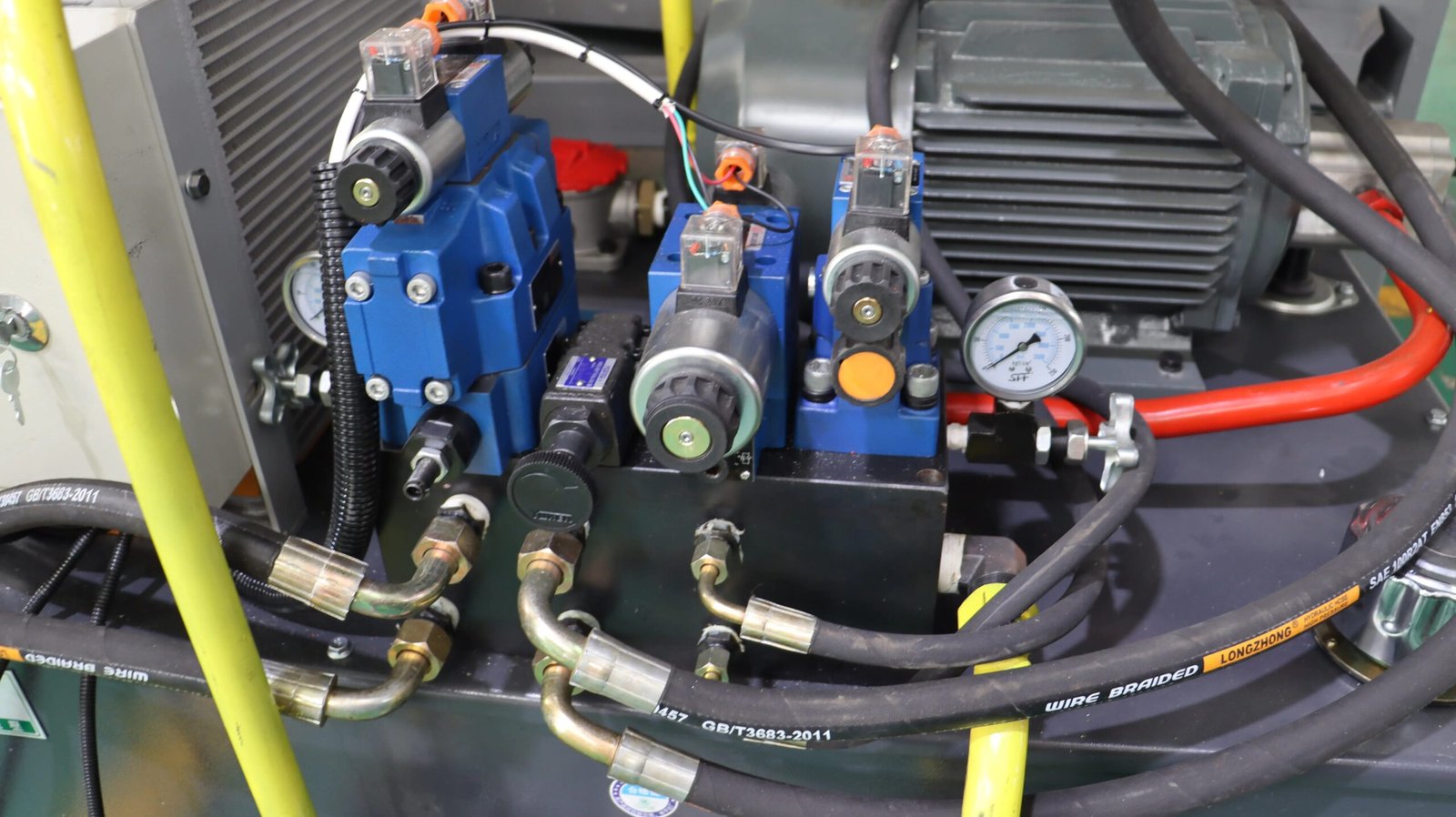

4.Hydraulic Opening System
|  |
Product specification：
| Model/Parameter | WPS600 | WPS800 | WPS1000 | WPS1200 | WPS1500 |
| Main Shaft Length(mm) | 600 | 800 | 1000 | 1200 | 1500 |
| Main Shaft Tactical Diameter(mm) | 280 | 400 | 450 | 450 | 500 |
| Main Shaft Speed(rpm) | 78 | 78 | 78 | 78 | 78 |
| Ram Travel(mm) | 600 | 800 | 1000 | 1200 | 1500 |
| Rotor Blades(pcs) | 39 | 51/57 | 63/92 | 81/116 | 99 |
| Fixed Blades(pcs) | 2 | 2 | 3 | 4 | 4 |
| Motor Power(kw) | 22 | 37 | 55/75 | 75/90 | 132 |
| Hydraulic Power(kw) | 2 | 3 | 4 | 4 | 11 |
| Screen Mesh Diameter(mm) | 30-80 | 30-80 | 30-120 | 30-120 | 30-120 |
| Cutting Chamber Dimension(mm) | 600*600 | 800*800 | 1000*1000 | 1200*1250 | 1530*1800 |
| Overall Dimension(L*W*H)(mm) | 1750*1400*1780 | 2430*1720*2480 | 2880*2180*2570 | 3350*2300*2660 | 3500*2870*2700 |
| Weight(kg) | 2800 | 5000 | 7000 | 8000 | 10000 |
Amige Machinery Co., Ltd is professional Customized Color Single Shaft Shredder Factory WPS1500 suppliers and China Customized Color Single Shaft Shredder Factory WPS1500 factory, these equipment is being used in many application. View application or details above or inquiry more. We also OEM/ODM Customized Color Single Shaft Shredder Factory WPS1500. You can find tech details and ask price at Amige Machinery Co., Ltd.
